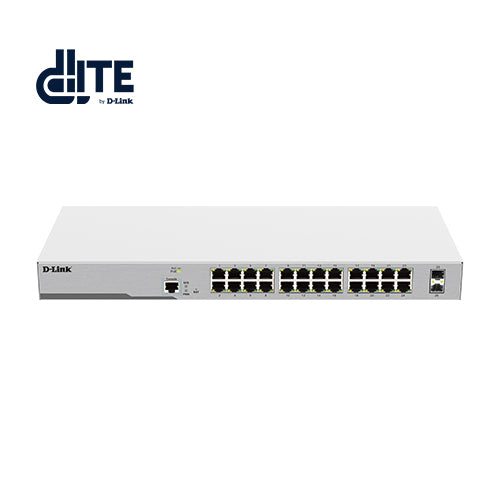

26-Port Layer 2 Gigabit Cloud Managed PoE Switch

26-Port Layer 2 Gigabit Cloud Managed PoE Switch

RM0.00
DGS-F1100-26PSD-SI
  • Gigabit High-Speed Networking
    - Gigabit ports allow you to connect up 24 devices for fast file transfers and smooth media streaming
    - Two (2) SFP uplink ports allow for additional connections to storage or an uplink network
  • Power Your Devices
    - Supports IEEE 802.3af/at PoE to Power PoE capable Network devices via ethernet cables without need for power adapters. Each port supports up to 30 watts, with a total PoE budget of 350 watts
  • Flow Control Easy to Use
    - Plug and play installation
    - IEEE 802.3x Flow Control
    - Auto MDI/MDIX crossover for all ports
  • Eco-friendly and Economical
    - Low-cost, innovative design runs reliably and quietly, saving energy and cutting costs without sacrificing performance.
  • Advanced Management
    - Web GUI : Intuitive browser-based configuration for quick setup.
    - CLI (Command Line Interface): Advanced control via Telnet/SSH for IT professionals.
    - Remote access and centralized management from anywhere.

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

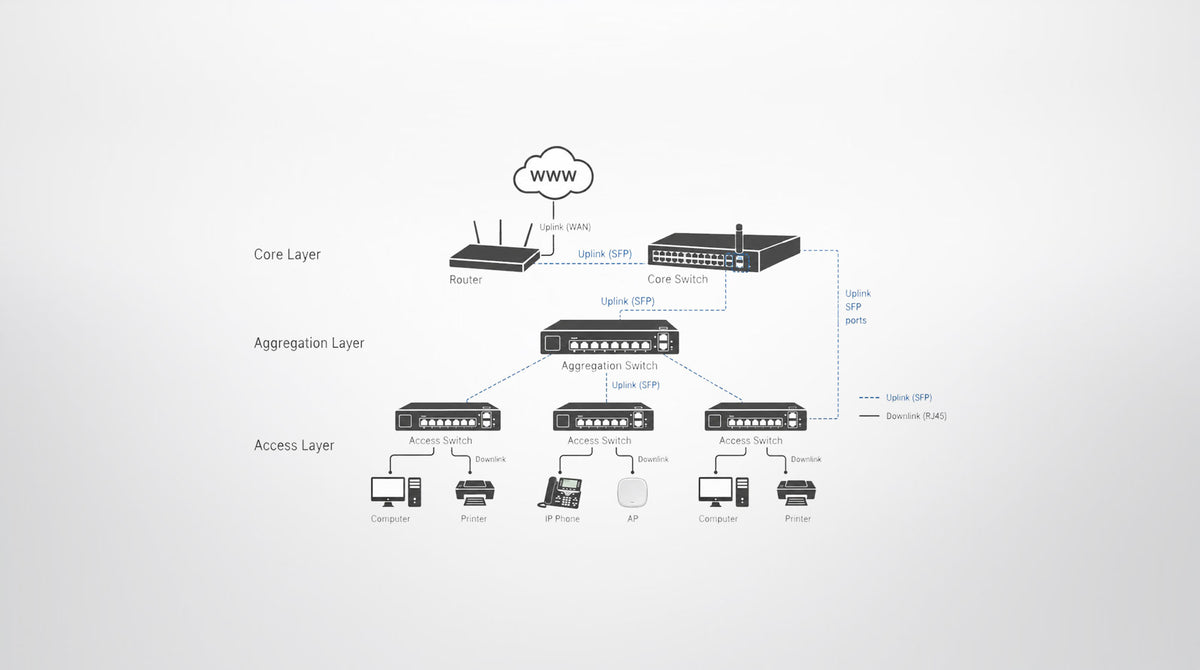

Gigabit access PoE switch fits needs in SMB network

Dedicated SFP Slots for High-Bandwidth Uplink Connectivity

Intelligent PoE Stable Operation

6 kV Surge Protection for Harsh Environments

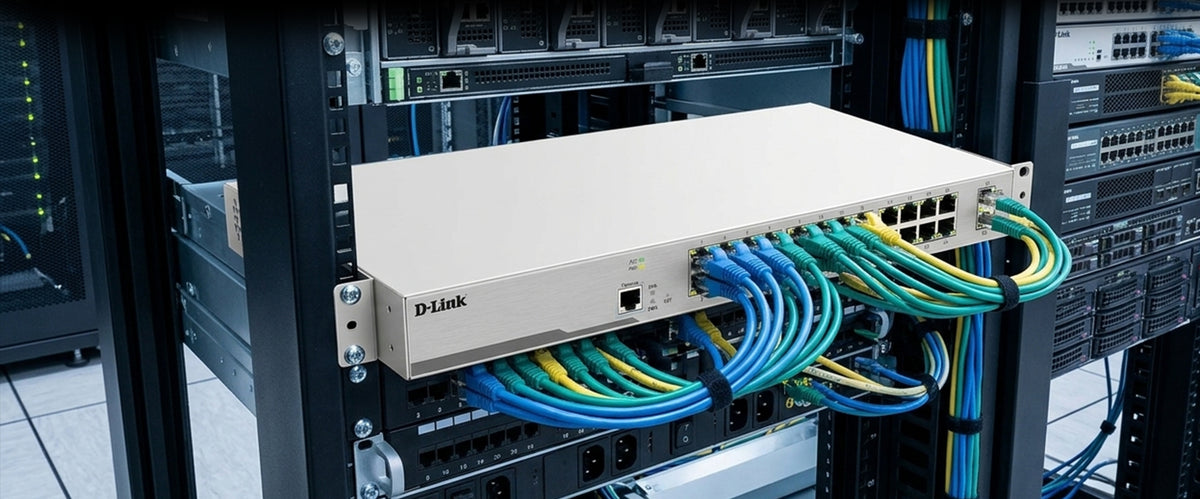

Support Desktop and 1U Rack Mounted

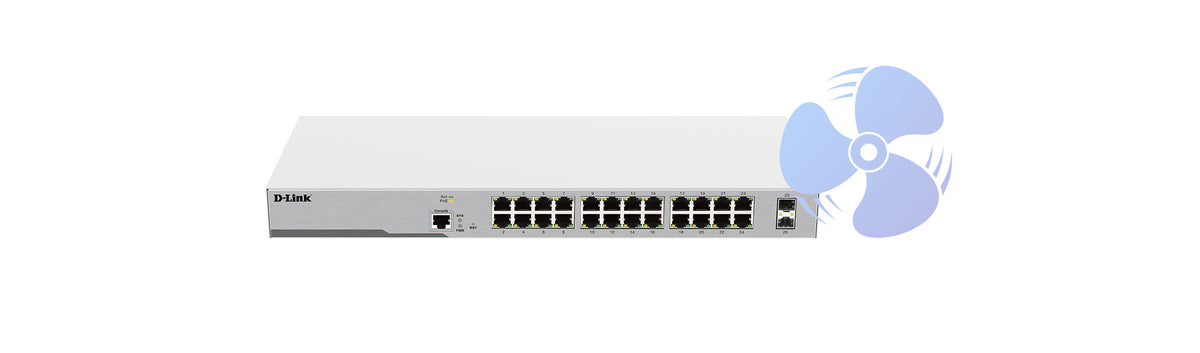

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–40℃) with reliability.

Cost-Effective Smart Cloud Managed Switches

With Zero-Touch Provisioning, devices can be shipped directly to each site and
automatically configured when connected。


*D-Link provides its cloud-managed Wi-Fi services on a complimentary basis. D-Link expressly reserves the right, at its sole discretion, to modify, amend, suspend,or terminate the terms and conditions, feature availability, or fee structure of this service at any time without prior notice. Your continued utilization of the servicefollowing any such alterations shall constitute your explicit acknowledgment and acceptance of the revised Terms and Conditions.

Tech Specifications

Hardware
Network Interface

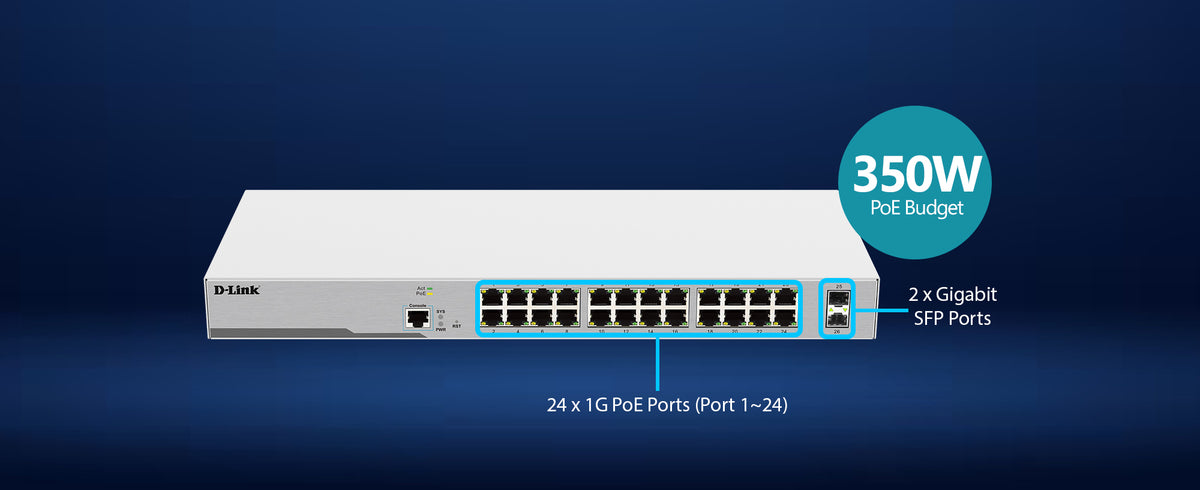

  • 24 x 10/100/1000 Mbps PoE Ports (Port 1~24)
  • 1 x 1000 Mbps RJ-45 Port
  • 2 x Gigabit SFP Ports
Management Port

• RJ-45 Port

Transmission Rate
  • 10/100/1000Mbps
  • Supports Auto MDI/MDIX and Auto-Negotiation
  • Supports 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet
Standards

• IEEE802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE802.3ab 1000 BASE-T
• IEEE802.3z 1000 BASE-X
• ANSI/IEEE 802.3: Auto-Negotiation
• IEEE802.3x Flow Control

PoE Protocol

• IEEE802.3af (Up to 15.4 W)
• IEEE802.3at (Up to 30 W)

General
Switching Capacity

• 52 Gbps

Packet Forwarding

• 38.688 Mpps

CPU Memory
  • DDR3 128 MB
Flash Memory

• 32 MB

PoE Ports

• Ports 1–24 Support PoE Output (IEEE 802.3af/at, Up to 30 W per Port)

Power Budget

• 350W

Physical
LED Indicators

• Per Port: Link/ACT, PoEPer Device: Power, SYS, RST

Dimensions

• 440 × 180 × 44 mm

Housing
  • Metal
Power Input

• AC 100-240 V, 50/60 HZ

Fan

• (One)1

Operating Temperature

• 0 to 40°C (32 to 104°F)

Storage Temperature

• -10 to 70°C (14 to 158°F)

Operating Humidity

• 10% to 90% (Non-Condensing)

Storage Humidity

• 5% to 95% (Non-Condensing)

Lightning Protection

• 6Kv

Certifications

• CE
